FMI HANDLER

Part of The Foundation Pack

The FMIHANDLER feature, included in The foundation Pack , allows to integrate FMUs (Functional Mock-up Unit) in the simulation loop with respect to the FMI 2.0 standard (Functional Mock-up Interface).

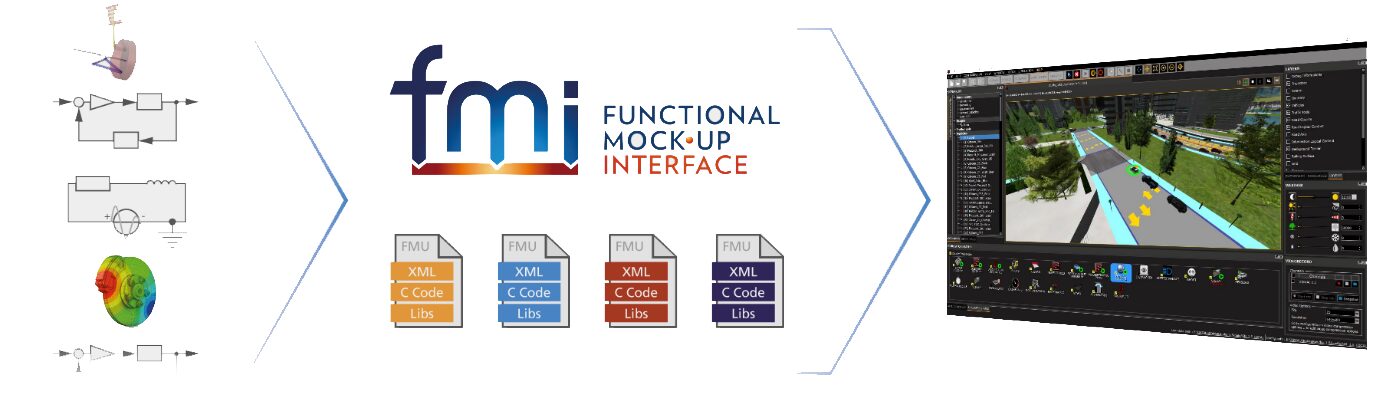

The Functional Mock-up Interface (FMI) is a free standard that defines a container and an interface to exchange dynamic models using a combination of XML files, binaries and C code zipped into a single file. It is supported by 100+ tools and maintained as a Modelica Association Project. SCANeR can interface with one or several Functional Mock-up Units (FMUs) in a simulation. The inputs and outputs of these FMUs can be connected to SCANeR variables from the SCANeR protocol.

Key features
Main features
  • Selection of FMUs
  • I/O mapping with SCANeR protocol
  • Co-simulation with FMUs
  • Synchronization between the models
Mapping editor
  • Select SCANeR data to send to FMU
  • Select SCANeR data to control by FMI
  • Set FMU initial values and constants
Included simulation modules
  • FMIHANDLER
Limitations
  • Only FMI 2.0 for co-simulation is supported
