MOTION

Optional modules

The Motion package enables the control of a motion platform in a driving simulator. The MOTION feature allows SCANeR studio to control the motion platform movements. It enables to re-compute dynamic equations in another point that the dynamic model gives.

  • Automatic (default): use the simulation commands to control the motion states.
  • Manual: allow the supervisor to control manually the motion states in order to deploy and retract the motion platform independently of the simulation states.



Key features
Main features
  • Monitor the platform state and user safety

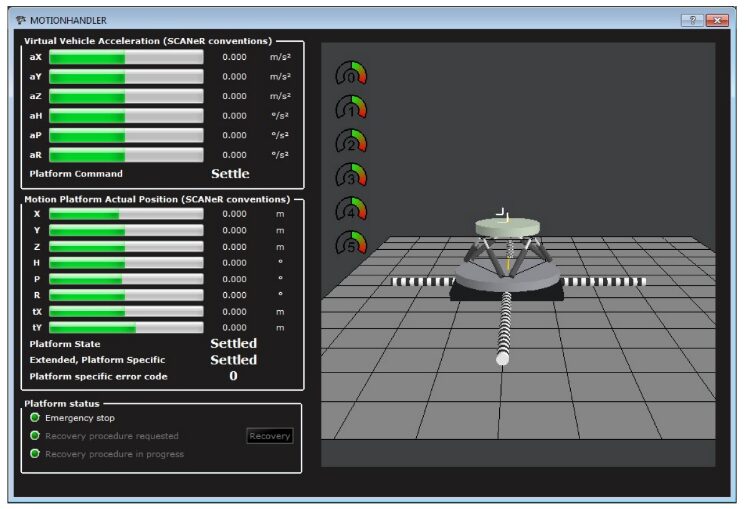

  • Monitor the platform position in real-time in a GUI
  • Automatic and Manual control
  • Depending of the simulator mounting, the SCANeR studio VISUAL module allows motion compensation (screen mounted or not on the platform, etc.)
Cueing algorithms
  • Use the Motion platform cueing (built-in the controller software)
  • SERA-CD
  • Autocue 2
  • Using the Motion API (part of Studio SDK), users can develop/interface their own cueing
Included modules simulation
  • MOTION
Supported hardware
  • Bosch Rexroth motion platforms
  • Moog FCS motion platforms
  • CKAS
  • D-Box
  • Using the Motion API (part of Studio SDK), users can develop/interface their own custom platform
Token management
  • One instance of this software package enables the usage of one motion platform
